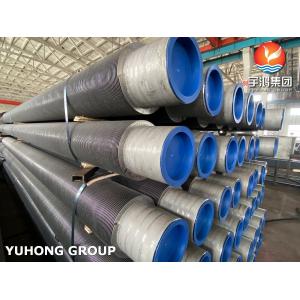

    ASME SA312 TP304 Austenitic Stainless Steel High Frequency Welded Solid Fin Tube For Superheater

    High Frequency Welding Base Tube ASTM A312 TP304 Fin Material ASTM A240 SS 304
    Product Specifications
    AttributeValue
    Base Tube Material StandardASTM A213, ASME SA213, ASTM A249, ASME SA249, ASTM A312, ASME SA312, ASTM A376, ASME SA376
    Base Tube Material GradeTP304, TP304L, TP304H, TP310, TP310H, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H
    TypeStraight Tube, U bend Tube, Coil Tube, Snake Tube
    ApplicationFurnace Tube, Tube Coil, Radiate Tube, Convenction Tube, Fired Heater
    Welding TypeHigh Frequency Welding
    Fin MaterialCarbon Steel, Stainless Steel, Alloy Steel
    Product Description

    High Frequency Welding Fin Tube (HFW Fin Tube), also called solid type fin tube, uses steel or stainless steel strip or steel round bar directly welded on the pipe/tube surface. This type of fin tube significantly improves heat transfer efficiency compared to bare tubes. Due to the tight welding of fins to the base pipe/tube, these finned tubes are ideal for vibrating conditions.


    Available Types
    Serrated Fin Tube
    Flat Fin Tube
    Studded Fin Tube
    Technical Specifications
    Base Tube / Core Tube O.D: 15.88 - 325mm
    Fin Height: 6 - 50.8mm
    Fin Thickness: 0.8 - 3.0mm
    Fin Pitch: Customizable to customer requirements
    End Options: Plain Ends / Beveled Ends
    No Fin Area on Both Sides: Customizable per customer request
    ASME SA312 TP304 Chemical Composition (%)
    CSiMnPSCrNiMoTiNbCuAlVCoFeResult
    ≤0.08≤1.0≤2.0≤0.045≤0.0318.0~20.08.0~11.0////////
    ASME SA312 TP304 Tensile Test ASTM A370-20
    Tensile Strength: Rm (Mpa)Yield Strength: Rp 0.2(Mpa)Elongation: A (%)
    ≥515≥205≥35
    Manufacturer Advantages

    Yuhong Group operates a 20,000 square meter workshop with 4 finning machines for high frequency welding fin tubes, achieving a daily extrusion capacity of 700m. Our facility is conveniently located less than 2 hours from Shanghai Port, ensuring efficient transportation. Our high rigidity studded tubes perform reliably under extreme temperature and pressure conditions.

    Applications
    Air Cooler
    Charge Air Chiller
    Condenser
    Evaporator
    Fluid Cooler
    Gas Cooler
    Oil Cooler
    Radiator
    Refrigeration
    Steam to Air Heat Exchanger
    Superheater
    High Frequency Welding Fin Tube manufacturing process
